Diesel telescopic boom Lift

Diesel Telescopic Boom Lift is a high-performance, straight-arm aerial work platform designed for safe and efficient operation in demanding outdoor, rough terrain, and complex work environments that require maximum height and horizontal reach.

1. Maximum Working Range

• This series offers an extensive range of working heights, typically from 16m (52.5 ft) up to 63m (206.7 ft).
• It provides outstanding Max. Horizontal Outreach, with some models reaching up to 26.0m (85.3 ft), offering great convenience for long-distance aerial work.
• The platform features a high lift capacity, reaching up to 480 kg, to meet the needs of heavy loads and multiple workers.

2. Operation and Design

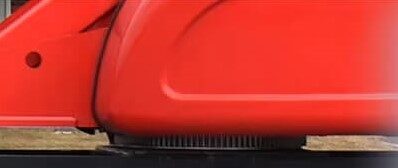

• Flexible Steering: The equipment can traverse obstacles for high-altitude operations, and the platform can rotate, providing flexible and easy steering.
• Special Chassis: It utilizes a multi-functional dedicated chassis, using the large arm’s front bracket to quickly elevate for aerial work.

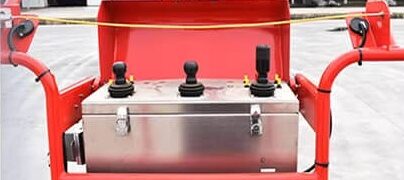

• Control: Features both a Platform control and a Ground control panel for sensitive and easy all-hydraulic lifting operations.

3. Structure and Safety Assurance

• Structural Stability: Equipped with a three-dimensional rotary lifting device, the equipment can automatically maintain the posture of the lifted materials and can be adjusted as required, offering excellent inching performance (micro-movement ability).
• Resistance to Harsh Conditions: The robust frame ensures long-term use in harsh conditions (dusty, vibrating construction sites) and is designed to operate in temperatures ranging from −25∘C to 60∘C.
• Limit Protection: The hydraulic system is installed with a platform limit protection device, ensuring the safety of personnel performing aerial work.
• Security Systems: The hydraulic unit is equipped with an overload protection device; if overloaded, the hydraulic station will automatically release pressure and stop running. It also includes an explosion-proof valve to prevent the platform from suddenly falling if an oil pipe ruptures.

---

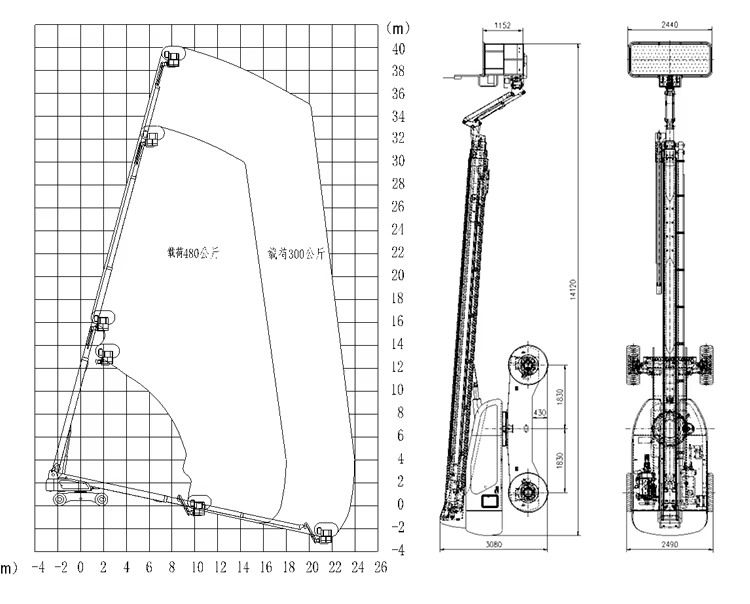

16-34m Diesel Telescopic Boom Lifts

Model	RL16	RL20	RL22	RL24	RL26	RL30	RL34
Max. Working Height(m)	16	20	21.9	23.7	28.7	30	34
Max. Platform Height(m)	14	18	19.9	21.7	26.7	28	32
Max. Lift Capacity(kg)	230	480	300	480	480	480	480
Max. Horizontal Outreach(m)	12.6	15	13.7	15.8	18.5	20.6	20.6
Stowed Length(m)	8.55	9.07	10.06	9.1	10.76	12.79	12.6
Stowed Width(m)	2.38	2.5	2.5	2.5	2.5	2.58	2.58
Stowed Height(m)	2.63	2.58	2.86	2.85	2.83	2.87	2.95
Platform Size	1.83×0.76	2.44×0.91	2.44×0.91	2.44×0.91	2.44×0.91	2.44×0.91	2.44×0.91
Wheel base	2.4	2.38	2.5	2.5	3	3	3
Drive speed stowed(km/h)	5	5	5	5	5	5	5
Gradea bility	45%	45%	45%	45%	45%	45%	45%
Engine Power(kw)	≈36kw@2400rpm~2600rpm
Fuel tank capacity(L)	100	100	100	100	100	151	151
Weight(kg)	7500	9500	9400	10400	12600	16800	18500

40-63m Diesel Telescopic Boom Lifts

Model	RL40	RL48	RL58	RL63
Max. Working Height(m)	40.4	48	58	63
Max. Platform Height(m)	38.4	46	56	61
Max. Lift Capacity(kg)	480	480	480	480
Max. Horizontal Outreach(m)	24	23.6	26	26
Platform Size	2.44×0.91	2.44×0.91	2.44×0.91	2.44×0.91
Wheel base	3.66	3.96	5.6	5.6
Drive speed stowed(km/h)	4.4	4.4	4.4	4.2
Gradea bility	40%	40%	40%	40%
Engine Power(kw)	≈54kw@2400rpm~2600rpm	≈54kw@2400rpm~2600rpm	≈54kw@2600rpm	≈74kw@2200rpm
Fuel tank capacity(L)	151	151	200	200
Weight(kg)	21800	23110	27500	28500

---

The Diesel Telescopic Boom Lift is suitable for a wide range of outdoor and industrial applications:

• Construction Engineering
• Curtain Wall Engineering
• Factory and Venue Maintenance
• Petrochemical Industry
• Ports and Shipyards
• Municipal and Landscaping (e.g., street light maintenance, garden pruning)
• Special Applications (e.g., outdoor advertising installation, bridge construction, airport maintenance)
