Diesel articulating boom Lift

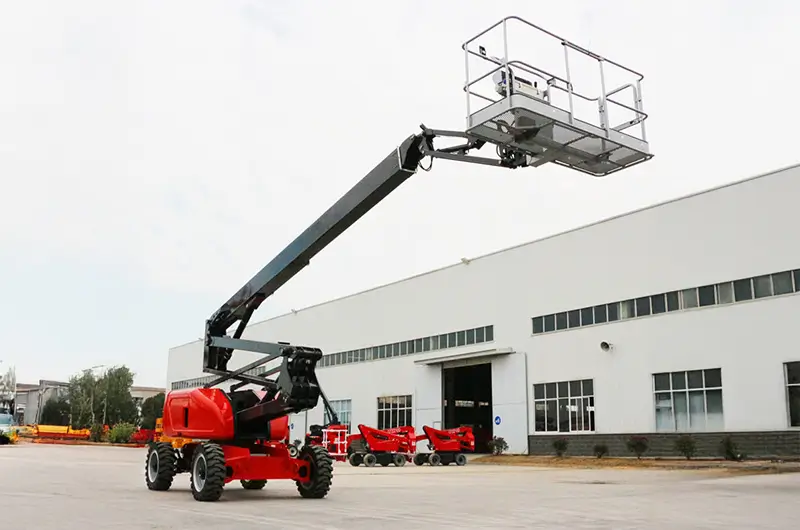

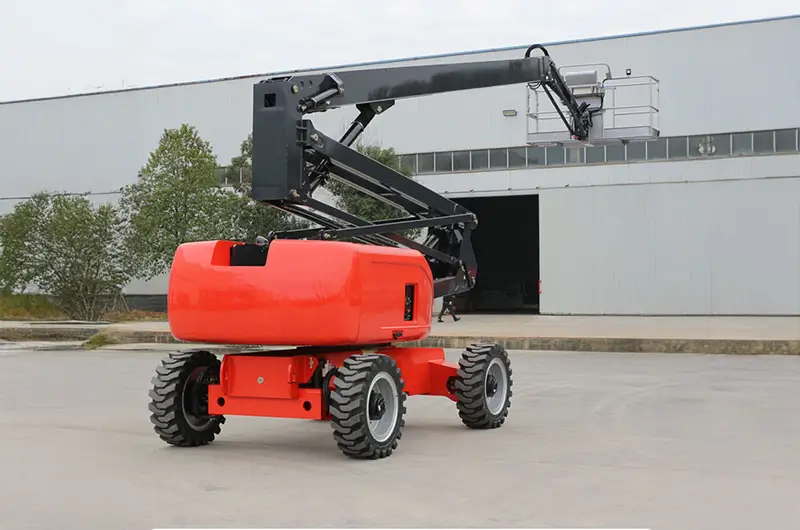

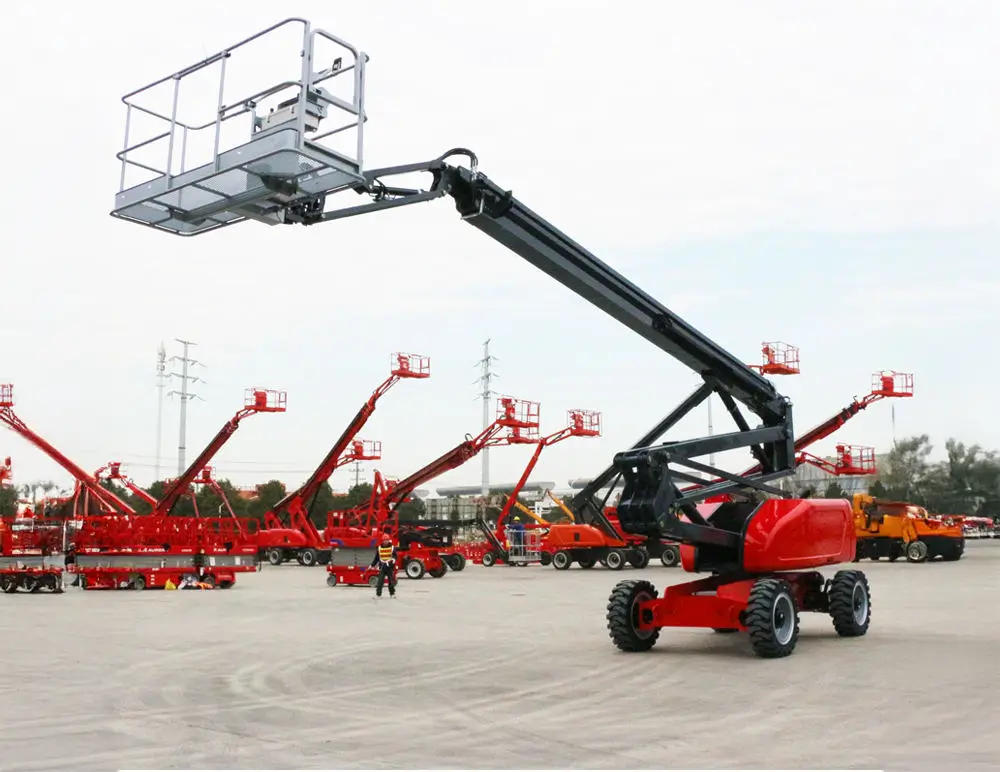

The Diesel Articulating Boom Lift is a rugged, versatile, and high-performance aerial work platform designed for safe and efficient operation in demanding outdoor and industrial environments. Featuring a jointed, or articulating, boom design, it provides exceptional flexibility, allowing workers to reach up and over obstacles and maneuver in confined or crowded areas where straight booms cannot.

• Powerful Diesel Engine: Operates with a diesel power source, offering strong, reliable performance primarily in outdoor and rough terrain conditions.
• High Reach Capacity: Models are available with a wide range of working heights (e.g., 12m to 47.5m), with lift capacities reaching up to 480 kg.
• Max. Working Height Examples: 16.7m (RZ16) to 47.5m (RZ47).
• Max. Horizontal Outreach Examples: 8.1m (RZ16) to 23m (RZ47).
• Superior Maneuverability: The platform offers flexible steering and can traverse obstacles to perform high-altitude work. The working radius is rotatable (359∘ rotation capability in some models) for all-angle coverage without repositioning the lift.

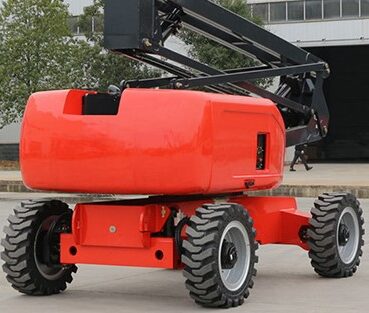

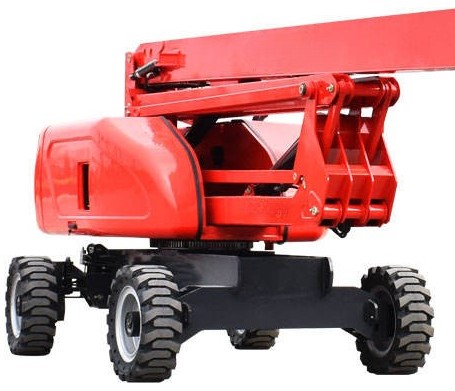

• Robust Stability & Chassis: The lift features specialized chassis (including tracked crawler options) and uses outriggers/supporting legs that secure stability on uneven ground, often with Force 5 wind resistance for height safety. The robust frame ensures long-term use in harsh conditions, operating in a wide temperature range (e.g., −25∘C to 60∘C).

Safety and Control Features

Safety is paramount, with the lift integrating several protection systems:

• Emergency Systems: Includes an Emergency descent gear to lower the platform to a safe height in case of sudden power failure. An Emergency stop function is also standard.
• Hydraulic Protection: Equipped with a Tubing explosion-proof valve in the hydraulic system to prevent the platform from suddenly falling if the oil pipe ruptures, enhancing safety and stability.
• Platform Safety: Features a platform limit protection device and automatic overload protection that releases pressure and stops operation if overloaded. A safety sensor stops the platform if it hits an obstacle during descent.
• Control: Offers multiple control operations that are all-hydraulic, sensitive, and easy to use, operable from the platform, ground, and remotely. Proportional control and an on-board diagnostic system are also standard features.

---

16-28m Diesel Articulating Boom Lifts

Model	RZ16	RZ18	RZ20	RZ22	RZ26	RZ28
Max. Working Height(m)	16.7	18	20.2	22	26.2	28
Max. Platform Height(m)	14.7	16	18.2	20	24.2	26
Max. Lift Capacity(kg)	230	230	230	230	230	230
Max. Horizontal Outreach(m)	8.1	9.55	11.6	12	15.4	17.28
Stowed Length(m)	6.72	7.26	8.23	8.54	10.65	11.7
Stowed Width(m)	2.28	2.28	2.38	2.38	2.48	2.58
Stowed Height(m)	2.47	2.4	2.5	2.55	2.85	2.97
Platform Size	1.83×0.76	1.83×0.76	1.83×0.76	1.83×0.76	2.44×0.91	2.44×0.91
Wheel base	2.4	2.4	2.4	2.4	3	3
Drive speed stowed(km/h)	4.2	4.2	4.2	4.2	4.2	4.2
Gradea bility	45%	45%	45%	45%	45%	40%
Engine Power(kw)	≈36kw@2400rpm					≈36kw@2500rpm
Fuel tank capacity(L)	100	100	100	100	100	110
Weight(kg)	7500	7800	8800	9380	15870	17000

---

32-47m Diesel Articulating Boom Lifts

Model	RZ32	RZ40	RZ47
Max. Working Height(m)	32	40.1	47.5
Max. Platform Height(m)	30	38.1	45.5
Max. Lift Capacity(kg)	480	480	480
Max. Horizontal Outreach(m)	20.2	21.6	23
Platform Size	2.44×0.91	2.44×0.91	2.44×0.91
Wheel base	3.66	3.96	5.6
Drive speed stowed(km/h)	4.4	4.4	4.4
Gradea bility	40%	40%	40%
Engine Power(kw)	≈54kw@2400rpm	≈54kw@2400rpm	≈81kw@2400rpm
Fuel tank capacity(L)	151	151	200
Weight(kg)	18000	24500	26500

---

The Diesel Articulating Boom Lift is a highly sought-after machine for outdoor and complex industrial settings, thanks to its robust build, strong off-road capability, and excellent horizontal reach.

• Construction Engineering:
• Used for structural installation, steel frame erection, and exterior maintenance on large commercial and industrial buildings.
• Ideal for aerial work on uneven construction sites, with 4×4 capability and oscillating axles ensuring stability and traction on unstable terrain.
• Curtain Wall Engineering:
• Applied in the installation and cleaning of glass curtain walls, facade panels, and enclosure systems on high-rise buildings.
• The articulating boom can reach over obstacles like building edges or balconies to precisely access the work point.
• Factory and Venue Maintenance :
• Used in large warehouses, industrial plants, and sports venues for the installation of overhead equipment, maintenance of lighting systems, and repair of roofs and truss structures.
• Petrochemical Industry:
• Essential for inspection, welding, painting, and maintenance of reaction towers, piping systems, and large storage tanks in refineries and large chemical facilities, where precise horizontal outreach is crucial.
• Ports and Shipyards :
• In shipyards, used for shipbuilding, marine engineering, sandblasting, hull painting, and repair work.
• Assists in the maintenance of container cranes and other elevated equipment in port logistics and cargo handling.
• Municipal and Landscaping:
• Used in urban infrastructure maintenance, such as the installation and inspection of streetlights and traffic signals.
• Employed for pruning tall trees and general landscape maintenance in large parks and urban areas.
• Special Applications :
• Suited for challenging terrains that require low ground pressure and extreme off-road capability, such as using tracked chassis (crawler-mounted boom lifts) on muddy or soft ground.
• Used for setting up large events, including assembling tent frameworks and installing lighting and sound equipment.
