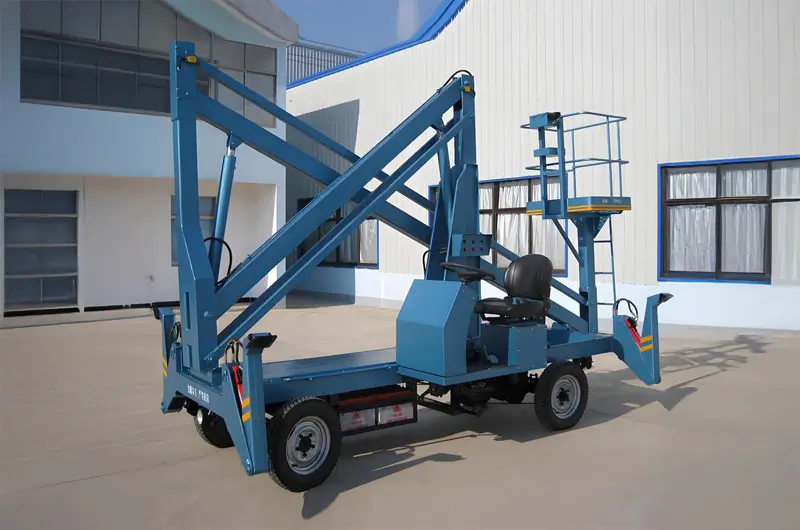

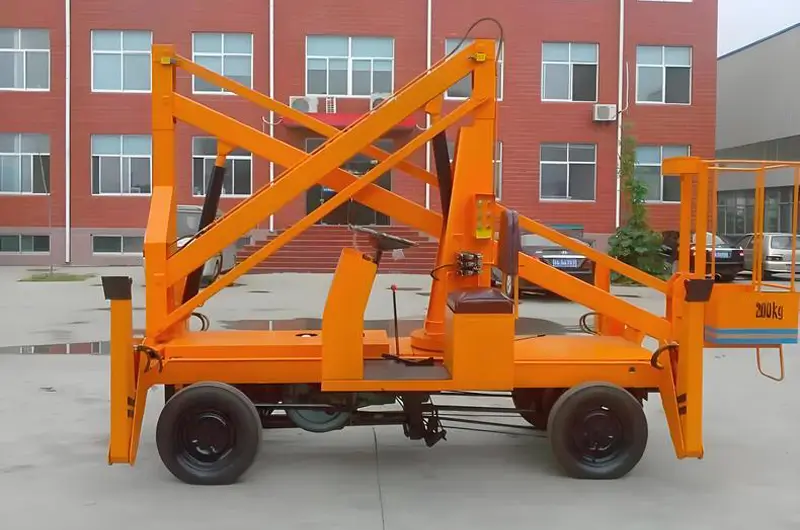

Drivable Cherry Picker Boom Lift

Drivable Cherry Picker Boom Lift is a type of boom lift , which you can drive just like a vehicle. It can reach a maximum driving speed of 15 to 30 kilometers per hour. The maximum platform heights across all series range from 8m to 14m. It can be powered by a diesel engine, a battery, or a hybrid combination of both, offering options to fit any budget.

This boom lift is built with a compact boom structure using a new, high-quality steel that provides both high strength and a lightweight design. The Drivable Cherry Picker Boom Lift is also equipped with automatic hydraulic support legs for stability. Its operation is straightforward, allowing the workbench to be raised and extended horizontally to easily move over obstacles and reach the desired working position.

Product Structure and Operating Principle

• Chassis and Drive System:
• This type of lift features a self-propelled chassis, setting it apart from towable models by allowing it to move independently.
• The drive system can be either tracked or wheeled. Tracked chassis, as shown in the images, are equipped with adjustable spider legs, enabling the lift to easily handle slopes, mud, or uneven ground for superior stability and off-road capability. Wheeled chassis are best suited for use on flat indoor and outdoor surfaces.
• Boom System:

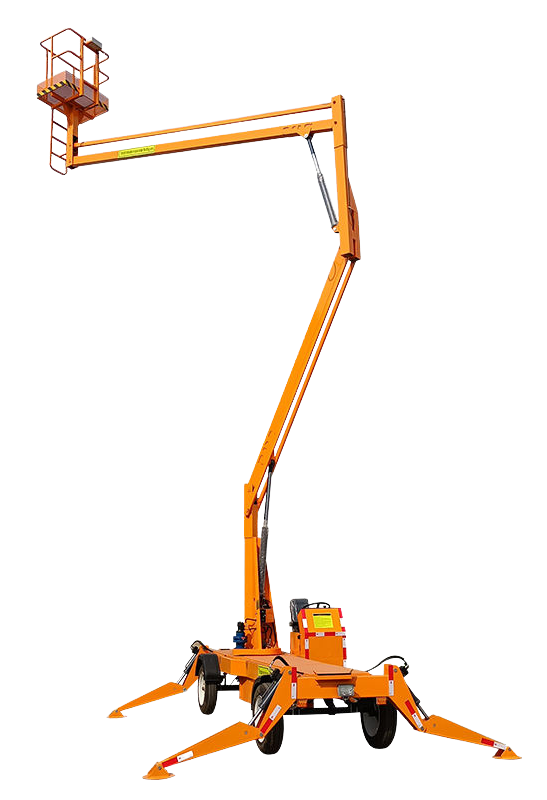

• The core of the lift is its multi-section, extendable, and foldable boom. The articulating boom design allows it to bend and twist, maneuvering around obstacles without needing to be repositioned, which is ideal for complex job sites.
• At the end of the boom is a work platform (or basket) designed to hold workers and their tools.
• Control System:
• The equipment offers multiple control operations, with full hydraulic control available from the platform, the ground, or via a remote control, making operation sensitive and easy to use.
• Support System:
• To ensure stability and safety during elevated work, the lift is equipped with hydraulic outriggers. These legs extend to provide a firm base on uneven ground.
• Power System:
• The lift provides dual-energy flexibility, with power options including AC electric or diesel fuel.
• Operating Principle:
• The machine can be driven directly to the work site. Once there, the operator deploys the hydraulic outriggers for stability.
• The operator then uses the control panel to manipulate the hydraulic system, extending, raising, and rotating the boom. The boom’s flexibility allows the work platform to reach the target height and position with precision, even in areas with obstructions.
• This self-driving capability improves work efficiency by reducing the time required to move and set up the equipment.

• Flexible Steering: This lift can easily go over obstacles for high-altitude work. The platform can also rotate, giving it flexible steering.
• Specialized Chassis: The equipment uses a multi-functional, specialized chassis. Its front-end support frame on the large boom allows for quick elevation during high-altitude operations.
• Limit Protection: The hydraulic system has a platform limit protection device to ensure the safety of personnel during high-altitude work.
• Stable Structure: The three-dimensional rotating and lifting device allows the equipment to automatically maintain the position of the lifted material. This position can also be adjusted as needed, providing excellent micro-motion performance.
• High-Quality Materials: The device’s frame is made of high-quality alloy steel.
• Safety Features: It includes a hydraulic brake, an anti-explosion valve, and an automatic overload protection device.
• Power and Control: The lift has its own power source, so no external power is needed. It can rotate 360 degrees left and right and features a high-grade one-button start-stop control system.

---

Model	GTZ-6	GTZ-8D	GTZ-9B	GTZ-10.5	GKT-10.5	GKT-12	GKT-13	GKT-14
Max. working hight(m)	8	10	11	12	12	14	15	16
Max. platform height(m)	6	8	9	10.5	10.5	12	13	14
Loading capacity(kg)	200	200	200	200	200	200	200	200
Power supply(v)	380/220	380/220	380/220	380/220	380/220	380/220	380/220	380/220
Machine weight(kg)	500	1100	1200	1300	1600	1900	2000	2200
Machine size(mm)	2300*800*2020	3500*1700*2650	3500*1700*2650	3700*1800*2800	3600*1700*2600	3900*1900*2600	3900*1950*3000	5400*2100*3100
Working radius(m)	1.5	2.2	2.2	2.4	3	3.4	4	4
Travel speed(km/h)	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20
Wind resistance(grade)	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5
Working pressure(Mpa)	8	8	8	8	10	10	10	10

• Airport Maintenance: Used for aircraft maintenance and elevated facility inspections at airports.
• Bridge Construction: Provides a high-altitude work platform during the construction or maintenance of bridges.
• Outdoor Advertising: Used for the installation and maintenance of high-mounted outdoor billboards.
• Shipbuilding: Applied in shipyards for welding, painting, and maintenance tasks on ship hulls at height.
• Cleaning Operations: Used for cleaning the exterior walls, glass facades, and large structures of high-rise buildings.
• Street Light Maintenance: Provides a convenient and quick way to inspect and repair urban street lights.
• Garden Pruning: Used for pruning tall trees and landscape maintenance.
