Forklift Mast Style booms lift

The Forklift Mast Style Boom Lift is a highly specialized, compact, and multi-functional Aerial Work Platform (AWP). It is a sub-category of the Mast Boom Lift, designed to combine the vertical reach of traditional mast lifts with the robustness and precision associated with forklift structures. It is particularly well-suited for high-precision and high-efficiency work in narrow or complex indoor and outdoor environments.

The Forklift Mast Style Boom Lift integrates several key technologies that make it an ideal choice for efficient operation:

• Compact & Maneuverable: The lift features an extremely compact design, optimizing indoor maneuverability in warehouses, factories, and retail environments.
• Electric Drive & Eco-Friendly: It typically uses an electric drive system, offering zero emissions and low noise, making it suitable for use in enclosed spaces and environmentally sensitive areas. Equipped with AC drive wheels, it provides powerful motion, a minimum turning radius of 1.8 meters, and a 15∘ gradeability.

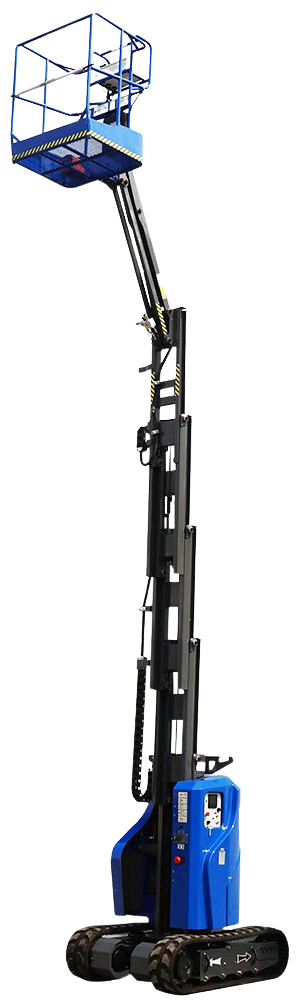

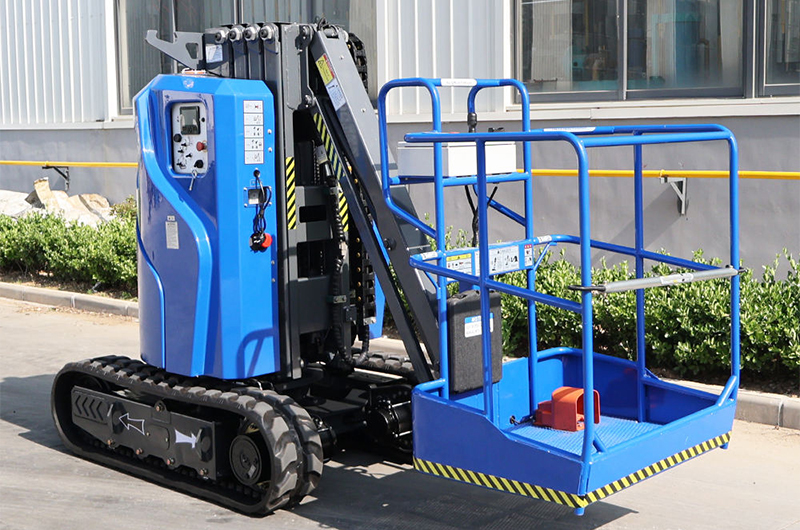

• Versatile Chassis: The chassis configuration is flexible, offering tracked (crawler) and wheeled options to adapt to various ground conditions. For example, the tracked option provides low ground pressure and stability on rough terrain.
• High-Strength Mast: The mast uses a heavy-duty forklift-style design, constructed from high-strength alloy, ensuring outstanding durability.

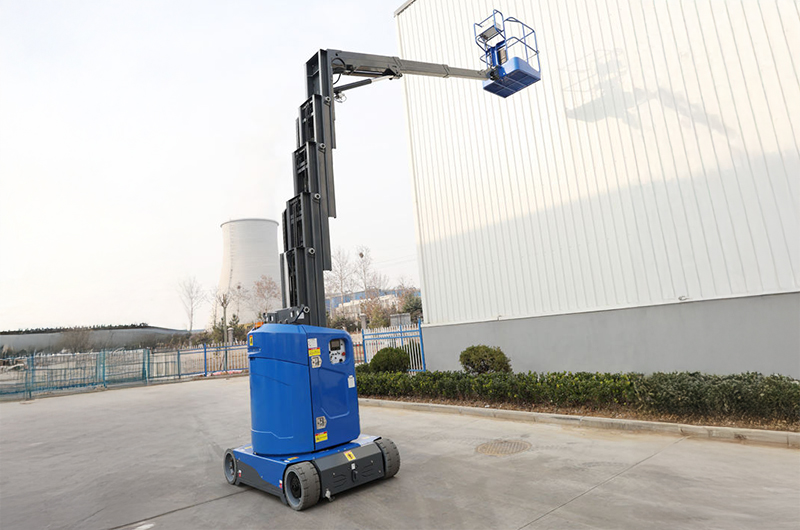

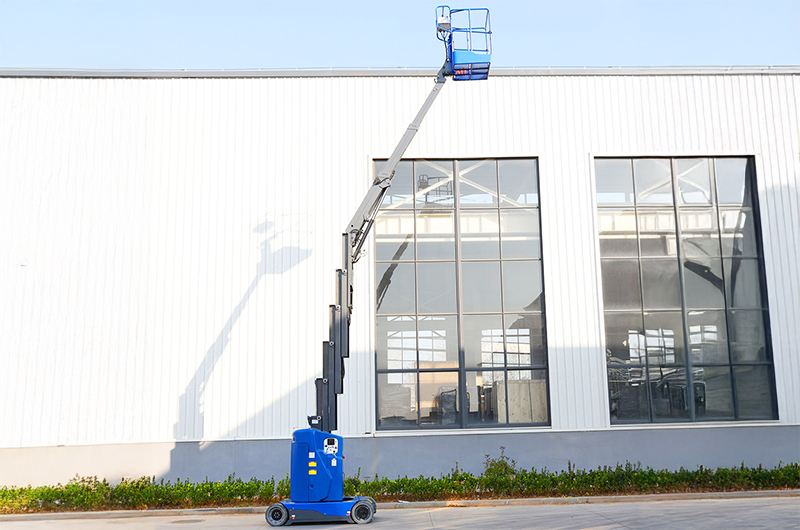

• Precision Operation Capability: It is equipped with an Articulating Jib to enhance precise access to overhead and hard-to-reach areas. The jib offers a 130∘ lifting amplitude for multi-angle transverse work.

Safety and Control Systems

Safety and operational convenience are core advantages of this machine:

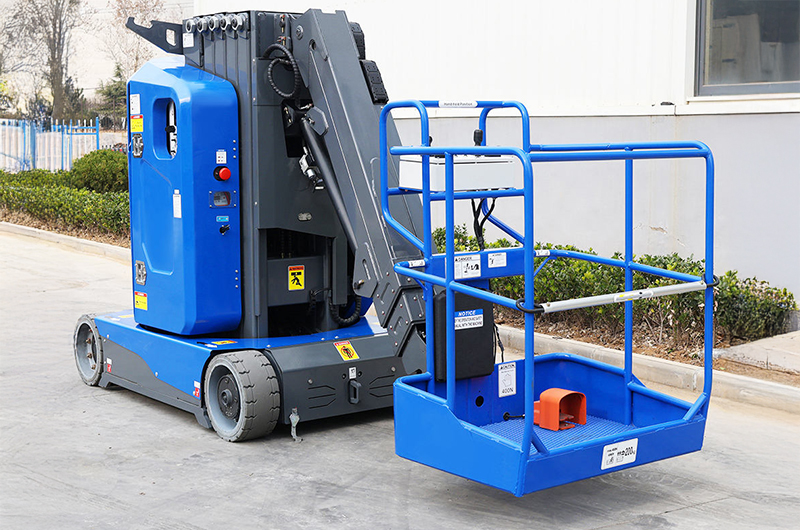

• Dual Control System: Equipped with both a Platform Control Panel and an independent Ground Control Panel. The bottom control allows ground personnel to perform basic operations (raising, lowering, and stopping) if the platform control malfunctions or assistance is needed, providing dual safety assurance.
• Real-Time Safety Monitoring: Features a Level Sensor that immediately issues an audible/visual alarm and automatically cuts off lifting power if the platform tilt exceeds 3∘, preventing overturning.
• Emergency Systems: Includes an Emergency Descent System and an independent Flying Boom Emergency Lowering Switch. This ensures the platform can be safely lowered to the ground in the event of a main hydraulic or power system failure.
• Pothole Protection: Equipped with a Pothole Protection System to ensure stability if the wheels encounter a pit or pothole while the equipment is elevated.

---

Model	AMWP9C	AMWP10	AMWP12
Max.Working Height	9.2m	10.00m	12.65m
Max.Horizontal Reach	3.51m	3.51m	6.05m
Overall Length	3.51m	3.51m	6.05m
Overall Width	2.75m	2.78m	3.72m
Overall Height (stowed)	1.15m	1.00m	1.2m
Platform Dimension	1.98m	1.98m	1.98m
Ground Clearance (Stowed)	0.8*0.93m	0.8*0.93m	0.8*0.93m
Ground Clearance (Raised)	85mm	85mm	80mm
Wheelbase	85mm	85mm	80mm
Loading Capacity	1.15m	1.2m	1.55m
Occupants	200kg	200kg	200kg
Turret Rotation	2	2	2
Max.Working Slope	220°	356°	352°
Travel Speed (Stowed)	X-2°Y-2°	X-2°Y-2°	X-2°Y-2°
Travel Speed (Raised)	1.6km/h	4.5km/h	3.6km/h
Tyres	0.9km/h	0.8km/h	0.7km/h
Driving Motor	230*90*92mm	φ406*125mm	φ406*178mm
Lifting Motor	32V/4KW	15V/0.9KW	32V/3.3kw
Battery	48V/3KW	24V/3KW	48V/3kw
Charger	48V/220Ah	24V/220Ah	48V/260Ah
Weight	48V/35A	24V/30A	48V/35A
machine Weight	2800kg	2850kg	4980kg

---

Core Strengths: Extremely compact, electric zero-emission, and precise extension (with Jib).

Area	Environment	Key Tasks
I. Indoor & Confined Spaces	Large Warehouses, Factories, Malls (Narrow 1.0m body width)	High-level access/picking (in narrow aisles), equipment maintenance (lighting, piping), production line troubleshooting.
II. High Precision & Special Environments	Data Centers, Hospitals, Theatres (Requires low noise, zero emissions, and precise obstacle clearance)	Precision installation (art, lighting), sensitive system maintenance (cabling, cooling), multi-angle aerial work (using the 130∘ Jib).
III. Outdoor & Versatility	Municipal Streets, Landscaping, Uneven ground (Tracked chassis option available)	Street/traffic light maintenance, outdoor signage installation, precise tree pruning (where obstacles must be reached over).
