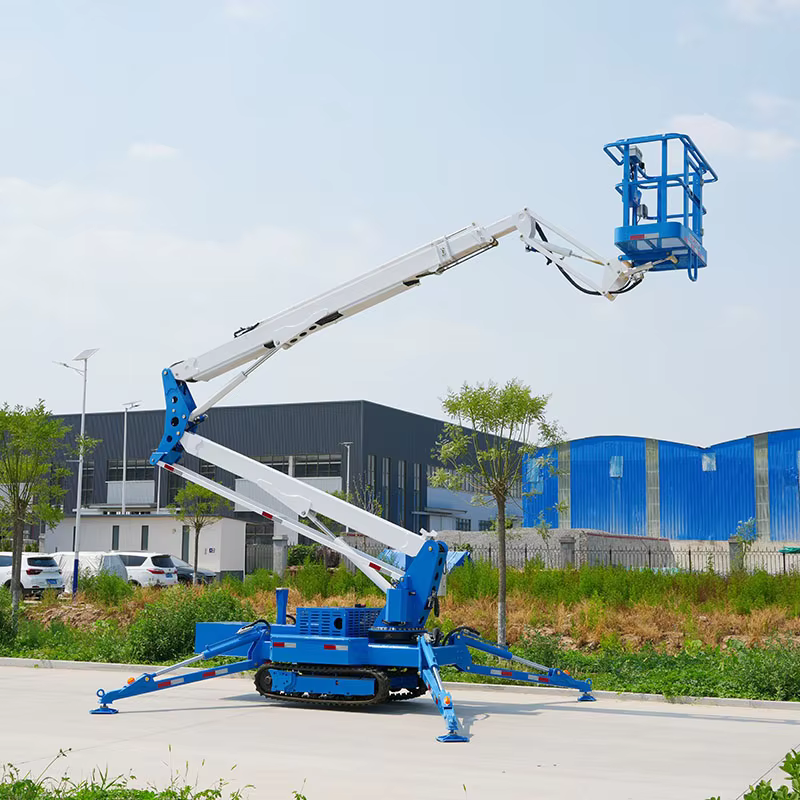

Tracked Cherry Picker Boom Lift

Tracked Cherry Picker Boom Lift, also known as a tracked bucket lift, tracked aerial lift, or tracked manlift, is engineered to tackle the most demanding work environments. With its exceptional off-road capability and lightweight design, this tracked boom lift is the ideal choice for aerial tasks on uneven, muddy, or confined terrains. This tracked man lift integrates over 10 years of production experience and holds CE and ISO certifications, guaranteeing a product of high quality, safety, and reliability. We offer a range of power options, including Diesel, Honda Gasoline, AC Electric, DC Battery, and Dual Power modes, providing you with ultimate operational flexibility.

• Superior Off-road Capability
• Equipped with a crawler track chassis and adjustable spider outriggers, this tracked manlift maintains stability even on slopes, muddy ground, or uneven surfaces.
• 360° Rotatable Working Radius
• A simple 360-degree slew structure provides comprehensive work coverage, eliminating the need to frequently reposition the entire tracked aerial lift and significantly boosting efficiency.
• Multiple Control Options
• This tracked bucket lift supports various operating methods, including controls on the platform, at ground level, and via remote control, offering sensitive and easy-to-use operation.
• Robust Structural Stability
• The sturdy frame of this tracked boom lift is designed for long-term stable operation in harsh environments, such as dusty, vibrating construction sites. The equipment can operate efficiently in extreme temperatures ranging from -25℃ to 60℃ (-13℉ to 140℉).
• Dual Energy Flexibility
• This tracked cherry picker offers both AC electric and diesel power options, allowing you to flexibly choose the power source based on different job requirements.

• Overload protection: The hydraulic unit has a protection device that automatically releases pressure and stops the machine if it’s overloaded.
• Emergency stop: In an emergency, the elevator can be stopped immediately.
• Emergency descent: An emergency lowering valve on each section of the pole allows for a safe descent if there is a problem with the equipment.
• Explosion-proof valve: The hydraulic system has an explosion-proof valve to prevent the platform from suddenly falling in the event of an oil pipe rupture.
• Safety sensor: If the platform hits anything while being lowered, a sensor will stop it to protect the cargo or operators.
• Torque shaft: The lift uses a torsion shaft with a spring for good balance. When the ground is uneven, it automatically levels itself. It also has its own electromagnetic brake after being powered on.

Model	TBL-10	TBL-12	TBL-14	TBL-16	TBL-18	TBL-20
Lifting height	10M	12M	14m	16M	18M	20M
Working height	12M	14M	16M	18M	20M	22M
Load capacity	200KG
Platform size	700*900*1100mm
Working radius	5.5M	6.5M	8.5M	10.5M	11M	11M
Net Weight	2400KG	2500KG	2800KG	3000KG	4500KG	6700KG
Overall Size( L*W*H)	5.2*1.7*2.1M	6.2*1.7*2.1M	5.6*1.7*2.1M	5.7*1.7*2.2M	6.5*1.8*2.3M	5.8*1.9*2.3M
Supporting Legs Stride Distance(Horizontal)	3.0 M	3.6 M	3.6 M	3.9 M	3.9 M	3.9 M
Supporting Legs Stride Distance(Vertical)	4.7 M	4.7 M	4.7 M	4.9 M	4.9 M	4.9 M
20’/40’ Container Loading Quantity	20’/1set	20’/1set	20’/1set	20’/1set	20’/1set	20’/1set
	40’/3sets	40’/2sets	40’/2sets	40’/2sets	40’/2sets	40’/2sets

• Undercarriage: The lift features crawler tracks with adjustable spider legs that provide stability on slopes, in mud, or on uneven ground.
• Boom & Platform: The machine has a multi-stage boom arm that can extend to various heights and a spacious platform (bucket) for workers and tools.
• Control Panel: Both the platform and the ground have user-friendly control panels, with an optional remote control for enhanced operational flexibility.
• Power Source: Multiple power options are available, including Diesel, Honda Gasoline, AC Electric, DC Battery, or Dual Power.

Due to its unique tracked design and versatility, this tracked cherry picker finds extensive use across various sectors:

• Power Line Maintenance: Its compact design allows easy access into narrow wooded areas for inspection and repair of power lines.
• Solar Panel Installation: This tracked boom lift is capable of stable operation on uneven rooftops or challenging ground, efficiently handling the installation and maintenance of solar panels.
• Landscaping & Tree Pruning: Ideal for trimming tall trees, its tracks adapt to various soil conditions without causing excessive damage to lawns.
• Construction & Building Maintenance: Perfect for exterior wall construction, glass curtain wall installation, steel structure erection, and other high-altitude tasks on construction sites.
• Industrial Maintenance: This tracked man lift is suitable for internal and external factory equipment maintenance, pipeline inspection, and high-level stock picking in warehouses.
• Billboard Installation: Easily reaches high-mounted billboards for installation or replacement tasks.
