Vertical mast booms lift

Vertical mast booms lift

Working Height:

11.2m (36.75ft)

–

Working Outreach:

3m (9.84ft)

–

Safe Working Load:

200kg 440lbs

ENQUIRY NOW

High Quality

We are committed to delivering exceptional aerial work platforms, utilizing premium materials and stringent manufacturing standards to ensure every unit is robust, durable, and reliably performs.

Fast Delivery

Understanding the value of time, we offer efficient logistics solutions. Standard products can be shipped within 7-10 working days of receiving advance payment, ensuring your projects stay on schedule.

Best Warranty

We stand confidently behind our products with an industry-leading one-year warranty. During this period, non-human-induced damaged parts will be replaced free of charge, offering you complete peace of mind.

Product Attributes

Condition:	New	Lift Drive / Actuation:	Hydraulic
Load capacity:	200kg (440lbs)	Working height:	11.2 Meter
Place Of Origin:	China	Payment Type:	T/T
Incoterm:	FOB,CFR,CIF,EXW	Transportation:	Sea/Railway/Air
Packaging:	Wooden Case/Container	Warranty Period:	1 Year

Description of Vertical mast booms lift

The Vertical Mast Booms Lift is a compact, highly maneuverable aerial work platform (AWP) designed primarily for indoor and narrow-space operations. Characterized by its straight vertical mast and a small articulated jib, it offers excellent precision and a flexible reach for maintenance and installation tasks.

Features of Vertical mast booms lift

1. Compact Structure and Mobility

Narrow Design: This lift features a compact structure with a narrow body width (e.g., 1.0m width in one model), making it highly suitable for small spaces, crowded industrial areas, and narrow channels.
High Maneuverability: The machine often includes a 345∘ turntable rotation function, allowing it to work more efficiently within a limited area.
Small Jib Reach: The small arm offers a 130∘ lifting amplitude, which is convenient for precise, multi-angle work.
Strong Climbing Ability: The lift boasts a strong power unit, with some models featuring up to 25% climbing ability.

2. Power and Control Systems

Drive System: Utilizes AC drive wheels that are power-saving, powerful, and typically require no carbon brushes, making them maintenance-free.
Dual Control System: Equipped with both a Platform control handle and a Ground control panel for versatile operation.
Steering Sensitivity: Features steering angle sensing to make the turning angle more sensitive.

3. Safety and Stability

• Proportional Joystick Controls
• Self-Locking Gates
• Drivable At Full Height
• Non-Marking Tires
• Two-Wheel Drive
• Two-Wheel Steering
• Automatic Braking System
• Emergency Descent System
• Tubing Explosion-Proof System
• Fault Diagnosis System
• Tilt Alarm
• Motion Alarm
• Horn
• Hour Meter
• Charging Protection System
• Flashing Beacon
• Automatic Pothole Protection
• Drive Enable
• Charging Indicator
• Manual Brake Release
• Lanyard Attachment Point
• Tie-Down And Lifting Points
• Platform Load Sense System
• Emergency Stop Button

Structural Components of Vertical mast booms lift

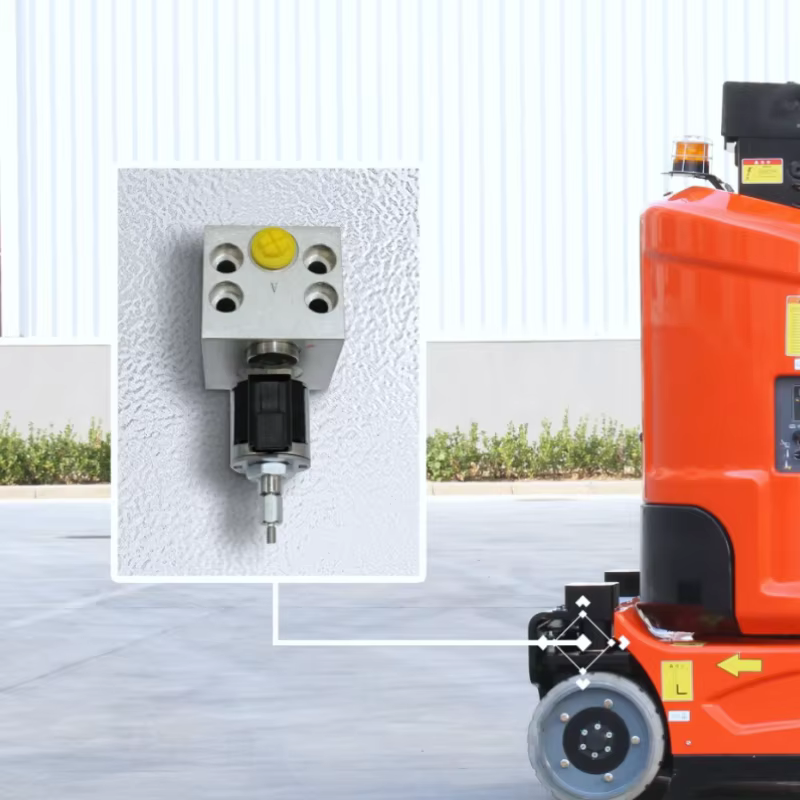

Cylinder HoldingValve

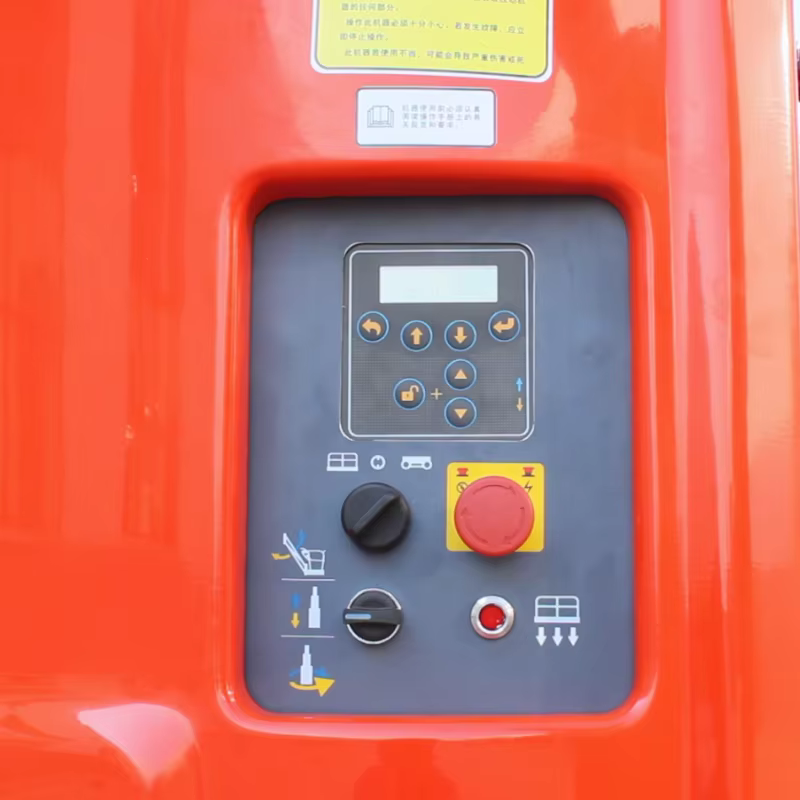

Upper and lower dual control system

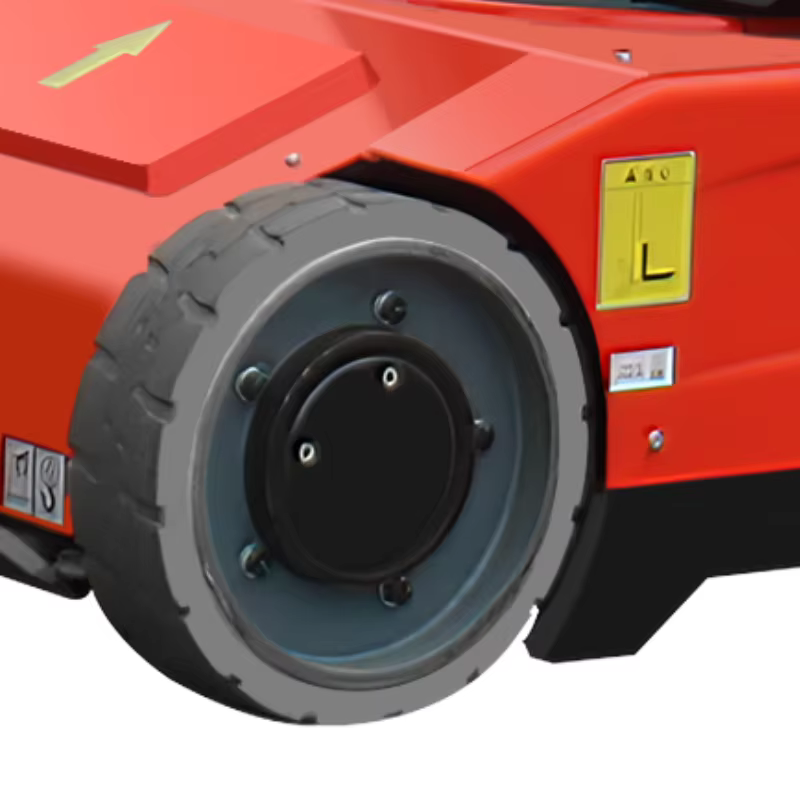

Non-Marking Tyre

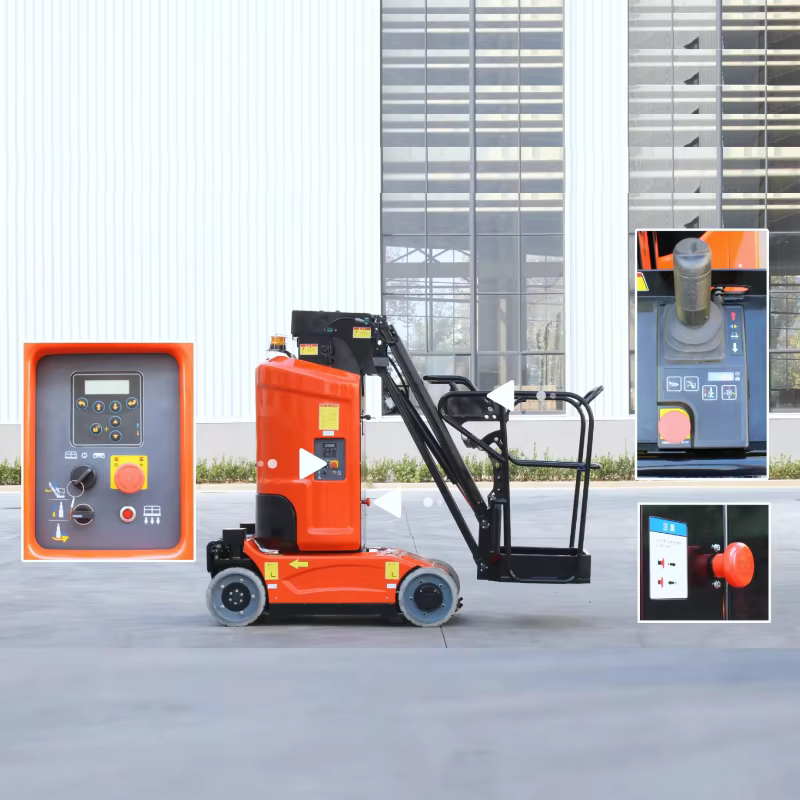

Emergency Stop Button

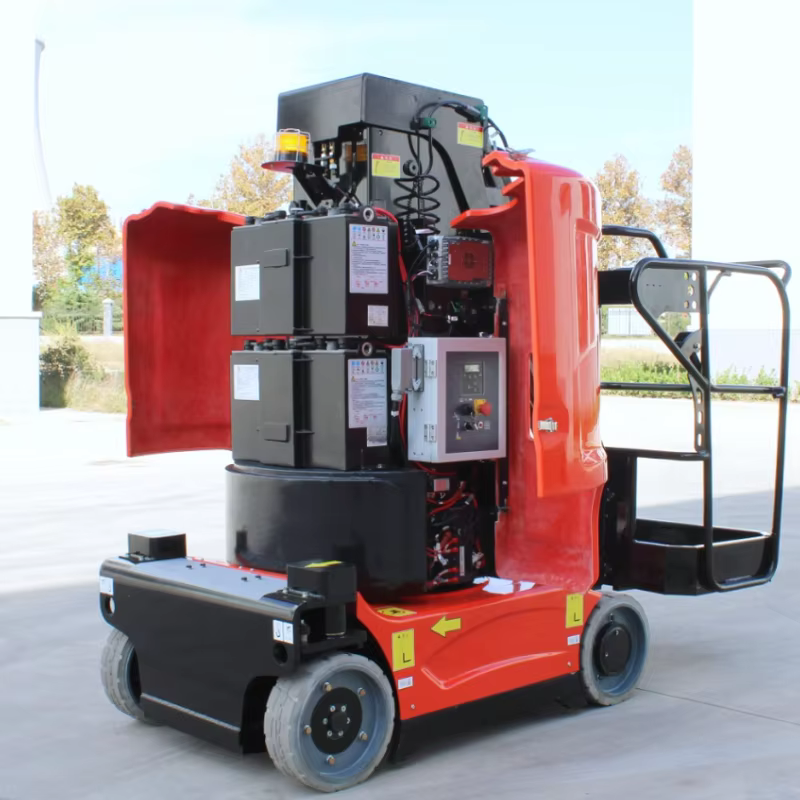

Onboard Diagnostic System

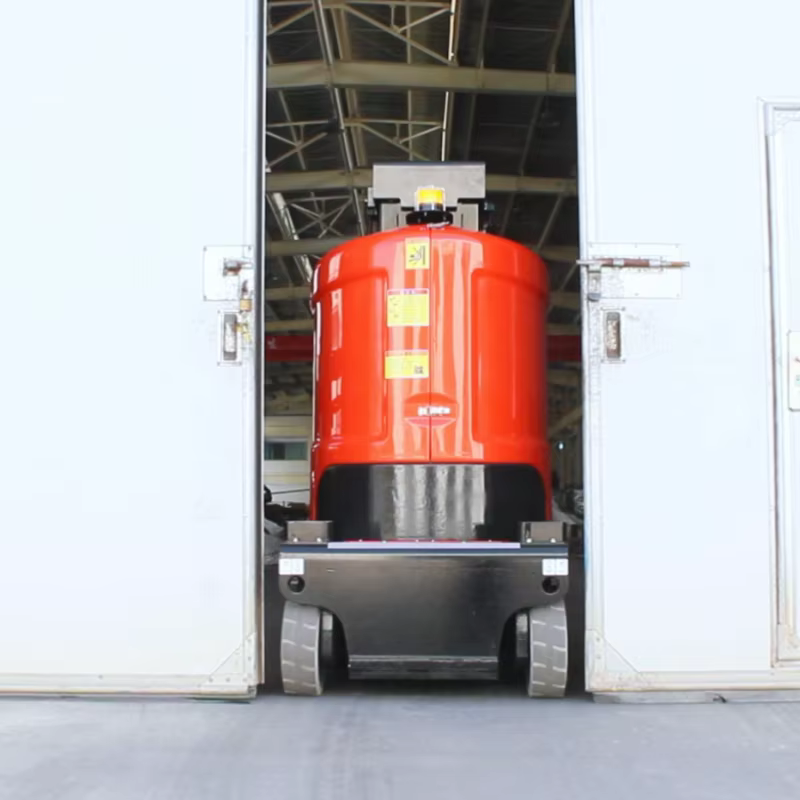

Compact Size and Good Trafficability

Dual control system

Onboard Diagnostic System

Compact Size and Good Trafficability

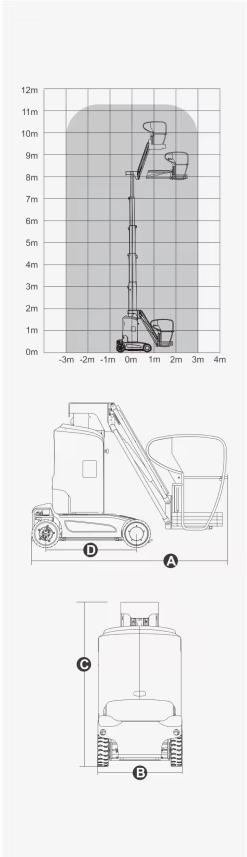

Paramenters of Vertical mast booms lift

Model	AMWP11.2
Max. Platform Height	9.2m
Max. Horizontal Reach	3m
Up and Over Height	7.89m
guardrail height	1.1m
Overall Length （A）	2.53m
Overall Width （B）	1.0m
Overall Height（stowed) （C）	1.99m
Platform Dimension	0.62*0.87m
Ground Clearance(Stowed)	70mm
Ground Clearance(Raised)	19mm
Wheelbase （D）	1.22m
Loading capacity	200kg
Occupants	2
Turning Radius(Inside/Outside)	0.23/1.65m
Turret Rotation	345°
Jib Movement	130°
Travel Speed(Stowed)	4.5km/h
Travel Speed(Raised)	0.5km/h
Up/Down Speed	42/38s
Max. Working Slope	X-2.5°，Y-2.5°
Tyres	Ф381*127mm
Driving Motor	24V/0.9kW
Lifting Motor	24V/3kW
Battery	24V/240Ah
Charger	24V/30A
Weight	2950kg

Vertical mast booms lift Application Scenariosres

The compact design of Vertical Mast Boom Lifts makes them ideal for:

Indoor Facility Maintenance: Working in warehouses, supermarkets, and convention centers.
Tight Spaces: Navigating between aisles, machinery, and complex piping systems.
Overhead Installation: Installing lighting, HVAC, and wiring systems.
General Maintenance: Cleaning, painting, and repair tasks at moderate heights.
